# From Dockerhub events

thatSuppose users want to trigger a pipeline or release on the successful push of an image on a registry on **Dockerhub,** they can create a webhook using the webhook type as Dockerhub.

### **Steps to create a Dockerhub Webhook for release** <a href="#steps-to-create-a-dockerhub-webhook-for-release" id="steps-to-create-a-dockerhub-webhook-for-release"></a>

**Pre-requisites:**

* An active Dockerhub account with registries needs to have the PAT which can be entered while creating Dockerhub integrations
* An Active cluster
* A Release that has been created from the Release Templates section

**Steps**

1. On click of the **create webhook** button, a modal window appears in which we can enter the details for webhook creation

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2Fag7jfOSKtaiGiftoZ844%2Fimage-20240418-104921.png?alt=media&#x26;token=41d1e3b9-40f7-4b18-8017-dd19539ab262" alt=""><figcaption></figcaption></figure>

2. Now we need to select the Webhook Type as Dockerhub from the **Webhook Type** dropdown

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2F9EI2hhb6fEOSAnuXyKug%2Fimage-20240418-104959.png?alt=media&#x26;token=6e14dd14-e94e-482c-aafc-176109919f16" alt=""><figcaption></figcaption></figure>

3. After selecting the webhook type as **Dockerhub**, a dropdown will be shown to select the registry for which the webhook needs to be created

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FLwHWB2dhueEGI2cACH7c%2Fimage-20240418-105050.png?alt=media&#x26;token=d73c3a0e-8795-46c6-bf74-4a55f7bfaa7c" alt=""><figcaption></figcaption></figure>

4. After selecting the Registry, select the **option type** as push

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FzyLLe7YOes8tHQXM9ind%2Fimage-20240418-105117.png?alt=media&#x26;token=08c9f193-87ce-4c83-9987-b4d19afdc492" alt=""><figcaption></figcaption></figure>

5. Once the action type has been selected, select the trigger type as **release.**

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FSTvVXb8I89452Z5I9Mot%2Fimage-20240418-111057.png?alt=media&#x26;token=d14e38d6-8d34-43d2-aba0-19d156148753" alt=""><figcaption></figcaption></figure>

6. After this users can select the release which they want to be triggered

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FSEr8wIYkAuqhwrCys9DL%2Fimage-20240418-111213.png?alt=media&#x26;token=a4505b5c-f2b2-48bf-a395-5c1c42850505" alt=""><figcaption></figcaption></figure>

7. Once every option have been selected the **map parameters** option will be enabled and users can click on it to move to the next step

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FJOb6j5T8zdpoZRyr2VsR%2Fimage-20240418-111259.png?alt=media&#x26;token=c77706d6-46b4-4ed3-9d6e-85ac17e7f9b6" alt=""><figcaption></figcaption></figure>

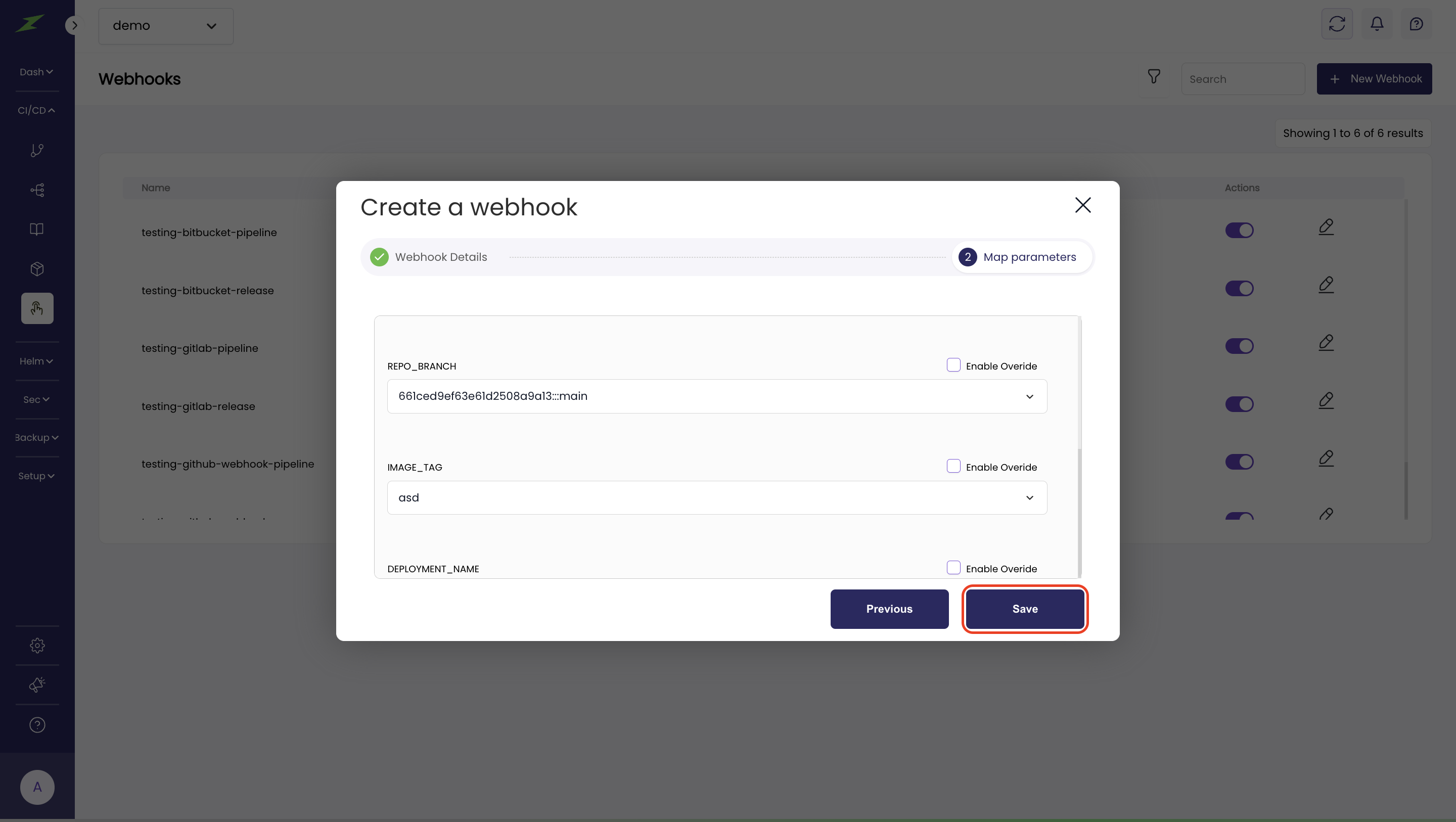

8. After going to the second step users can choose the **input run parameters**, once all these options have been selected, users can click on the save button to create the webhook

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FRvQtipgLehiju4yZJBHq%2Fimage-20240418-111334.png?alt=media&#x26;token=e9d60af2-338a-4bf7-afb4-7d386555ddf7" alt=""><figcaption></figcaption></figure>

9. Once the user clicks on save, the webhook has been created and is seen in the table list view

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FesEQRVdQ2jgPn3wejkKC%2Fimage-20240418-111418.png?alt=media&#x26;token=94954fbe-8e98-4298-adce-3c020535cfc4" alt=""><figcaption></figcaption></figure>

Users can click on the edit button to edit the webhooks, click on the toggle button to enable/disable the webhook, and as it is seen from the webhook type that it is a Dockerhub webhook.\
\
**Steps to create Dockerhub webhook for pipeline**

**Pre-requisites:**

* An Active cluster
* A microservice

Follow the same steps until **Step 4** of Creating Webhooks for release

**Steps:**

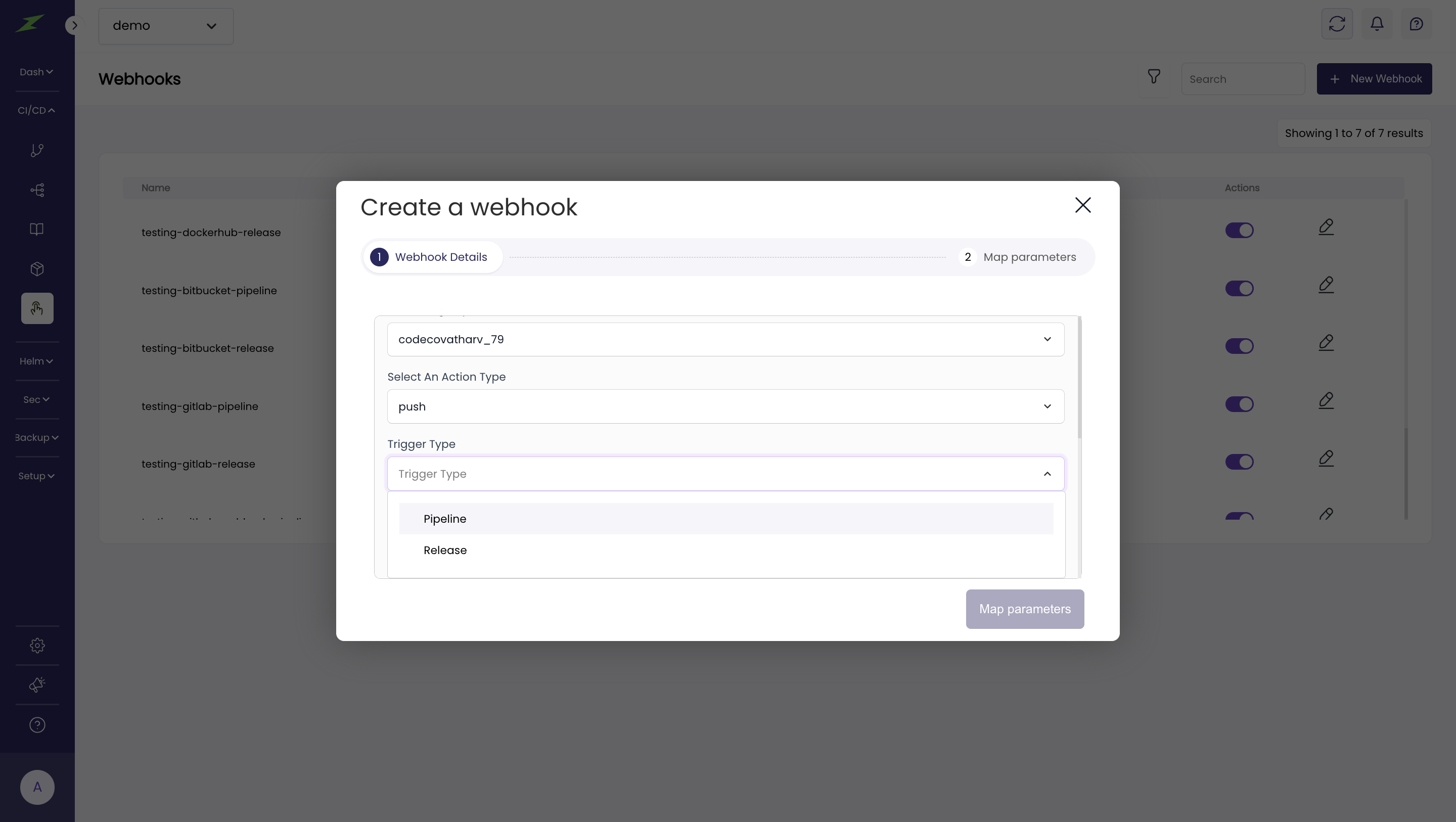

1. Once the registry and the action type have been selected, select the release type as the pipeline

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2Ffov8nqVsYMzkrbX3IO5B%2Fimage-20240418-122614.png?alt=media&#x26;token=7e489362-e8a9-4227-abf9-96cbac11f41f" alt=""><figcaption></figcaption></figure>

2. Once the Trigger type has been selected, now select the pipeline that needs to be triggered

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2Fz25YJ3S4Rr3Zraut1zlw%2Fimage-20240418-122643.png?alt=media&#x26;token=12d6c314-e526-4173-a456-c8a866199036" alt=""><figcaption></figcaption></figure>

3. After selecting the pipeline, select the environment in which the webhook needs to be created\
   **Remember to select the environment the same in which the cluster has been created**

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FBfKU7RCODdvWdCzpYyks%2Fimage-20240418-122702.png?alt=media&#x26;token=1c5335c6-de66-4679-8335-f840e4083c50" alt=""><figcaption></figcaption></figure>

4. After selecting the environment, users will be shown an option to select the cluster

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2Fl90nJ5IFRWGJ9sFPX5Ik%2Fimage-20240418-122744.png?alt=media&#x26;token=fdaf5582-7ca5-4769-b659-19132bb67bc0" alt=""><figcaption></figcaption></figure>

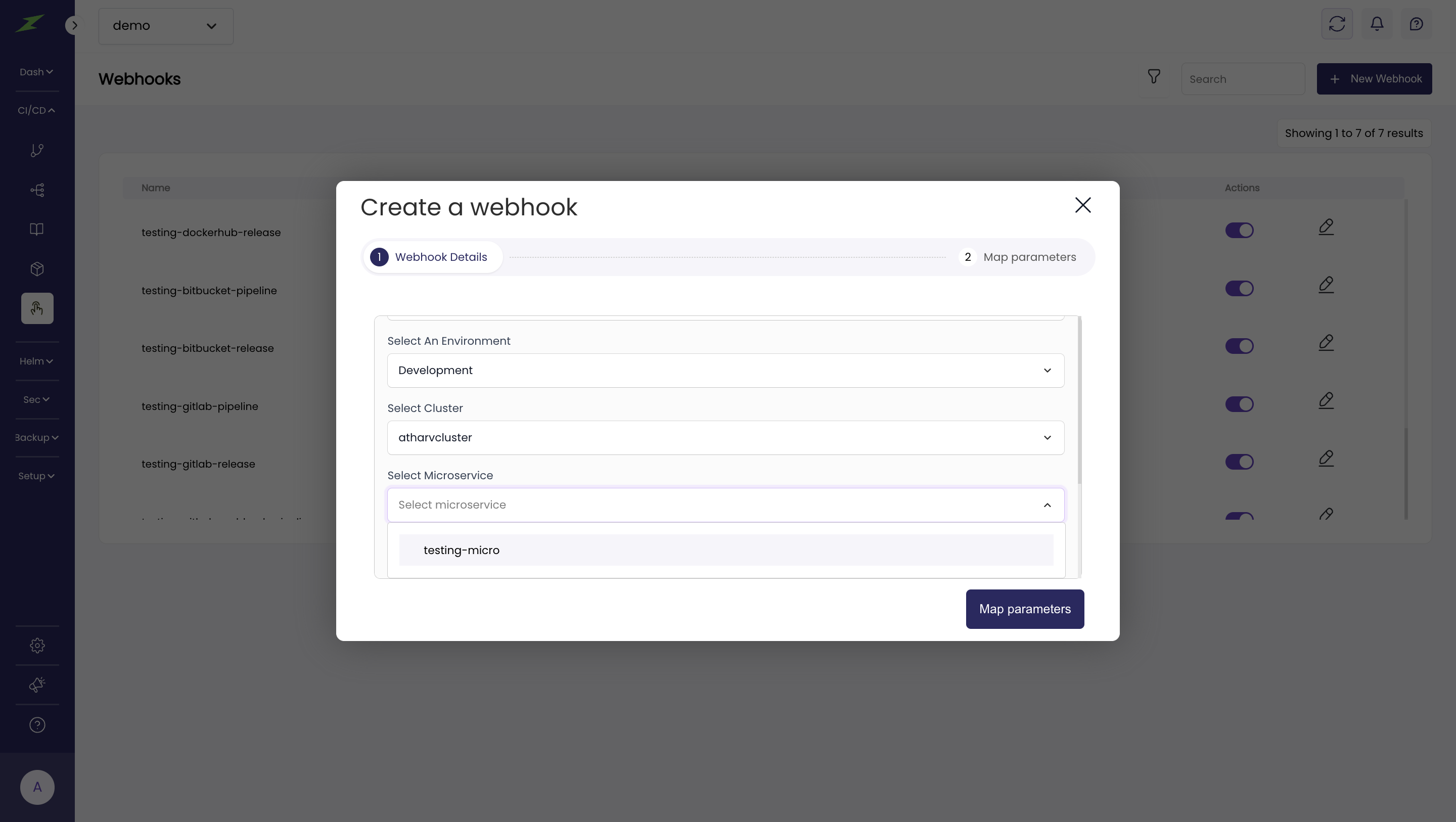

5. Once the cluster has been selected, select the microservice

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FRzd3xhRUhWoUlrwX5yCw%2Fimage-20240418-122805.png?alt=media&#x26;token=9851f9ec-1984-40c3-823e-b690c721a168" alt=""><figcaption></figcaption></figure>

6. After selecting the microservice, users can move to the **Map parameters** step, to select the run parameters for the pipeline

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FkuKmViAMo4KIZrMRQmsM%2Fimage-20240418-122951.png?alt=media&#x26;token=266a98ec-0f10-4b43-9ff1-f9156fee49f6" alt=""><figcaption></figcaption></figure>

7. In **Map parameters,** users can select all the options as they desire

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2F5Qv6m2X3WYy3FASbziAV%2Fimage-20240418-123025.png?alt=media&#x26;token=50902017-20f7-4116-8a8a-cc64bc8a8b90" alt=""><figcaption></figcaption></figure>

8. Once all this is done, users can click on the **Save** button to create the webhook for the pipeline.

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FKSutKYnw0AGdjHIg0OVR%2Fimage-20240418-123104.png?alt=media&#x26;token=48fbad33-da2a-4f45-8fb5-e03666dc44cc" alt=""><figcaption></figcaption></figure>

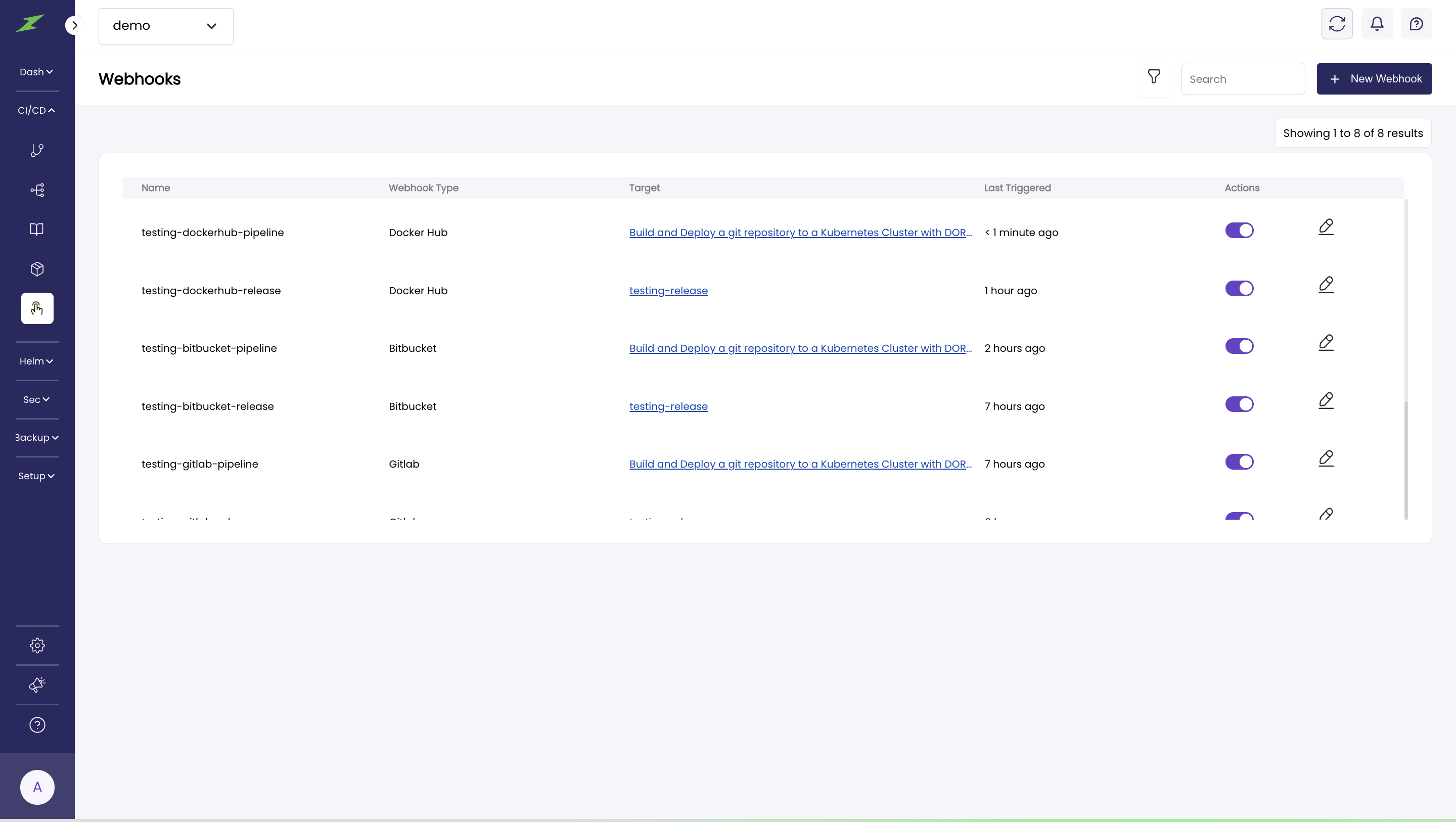

9. Once the webhook has been created successfully, it is shown in the webhooks list view

<figure><img src="https://3829750647-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAObcOkMb6sCSnSdcUOTm%2Fuploads%2FrvdtNiYrbayYuS6zUoll%2Fimage-20240418-123205.png?alt=media&#x26;token=b72103a1-f463-4240-907b-04e2531d3269" alt=""><figcaption></figcaption></figure>

Users can edit the webhook from the edit option, and click on the toggle window to enable/disable the webhooks, as well as it can be seen from the webhook type that it is a Dockerhub webhook.
