Ozone Backstage Plugin

ozone

Welcome to the ozone plugin!

Setup

1. Generate the service account token

   Create a role for your service account with the following permissions

   • Applications.List

   • Applications.Get

   • Pipelines.List

   • Pipelines.Get

   • Pipelines.Execute

   • Releases.List

   • Releases.Get

   • Releases.Execute

   • PipelineRun.List

   • PipelineRun.Get

   • ReleaseRun.List

   • ReleaseRun.Get

   • Registries.List

   • Registries.Get

   • Repositories.List

   • Repositories.Get

Create Role

Create a Service Account token From the ozone website, click on the Account Management on the sidebar and navigate to the Service Account token tab, Click on the Create Service Account button and choose the above created role, this will create a token.

Creating a Token

Use the token generated in your backstage configuration

Generated Token

1. Add the dependency for ozone plugin

# From your Backstage root directory
yarn add --cwd packages/app @ozonenpm/plugin-ozone

1. Add proxy config

use the following proxy format to expose your api token

proxy:
  ### Example for how to add a proxy endpoint for the frontend.
  ### A typical reason to do this is to handle HTTPS and CORS for internal services.
  # '/test':
  #   target: 'https://example.com'
  #   changeOrigin: true
  '/ozone':
    target: '<ozone-api-url>'
    headers:
      'authorization': '<your auth-token>'
    allowedHeaders:
      - x-workspace-id

Usage

PipelineRun List plugin

Add the EntityOzonePipelineRunContent extension to the entity page in your app:

// In packages/app/src/components/catalog/EntityPage.tsx
import {EntityOzonePipelineRunContent} from '@ozonenpm/plugin-ozone';

// For example in the CI/CD section
const cicdContent = (
  <EntitySwitch>
    <EntitySwitch.Case if={isozonePluginAvailable}>
      <EntityOzonePipelineRunContent />
    </EntitySwitch.Case>

Screenshots

Pipeline runs list view

Detailed pipeline run view

Ozone Resource Plugin

Ozone plugin outside the catalog

• This will be dependent on the workspace selection

• This component will have Tabs of Microservice, Repository, Registry, pipelines

• On click of tabs will route to the lists accordingly

Screenshots

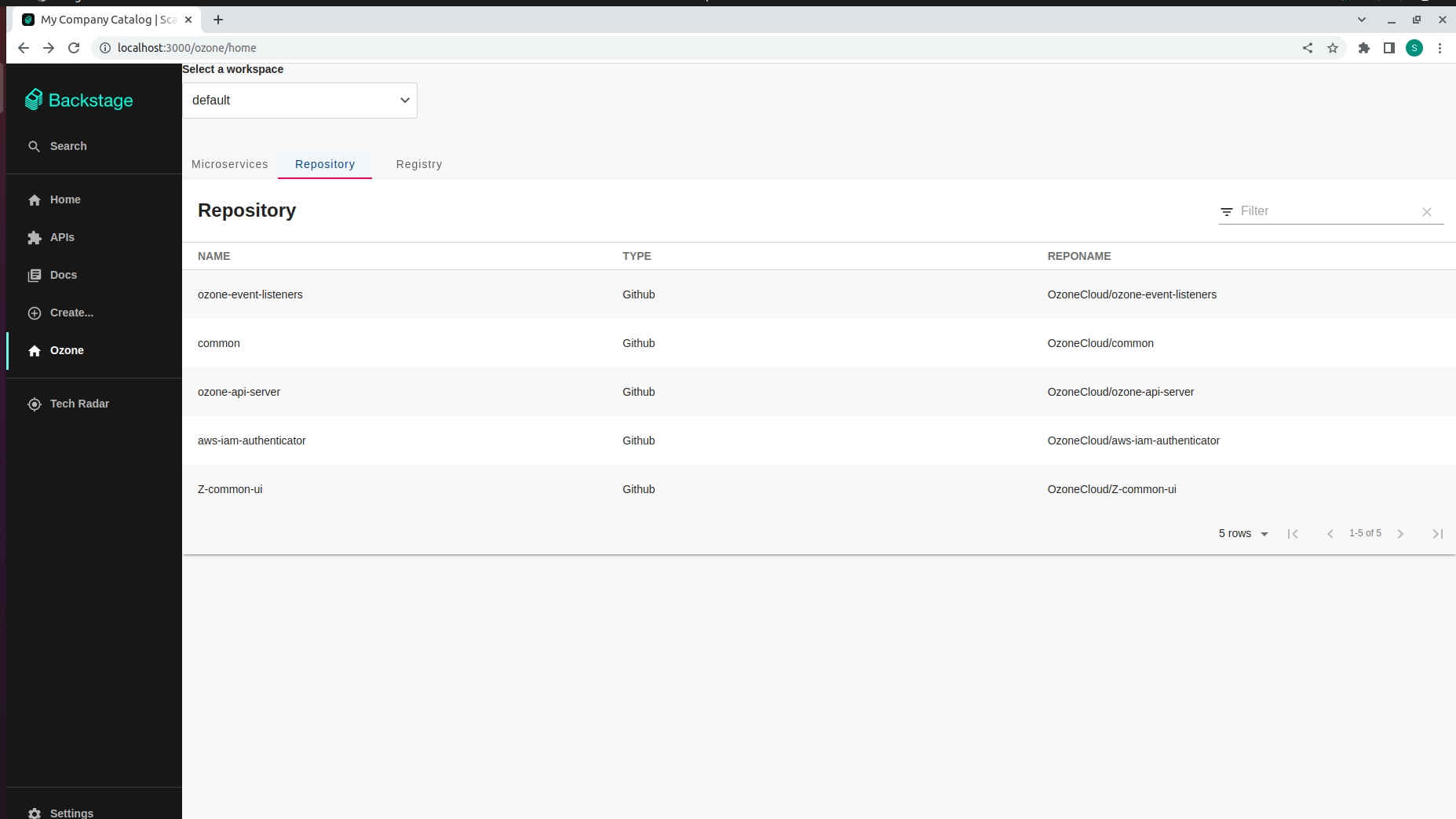

Screenshot from 2023-04-19 17-06-07

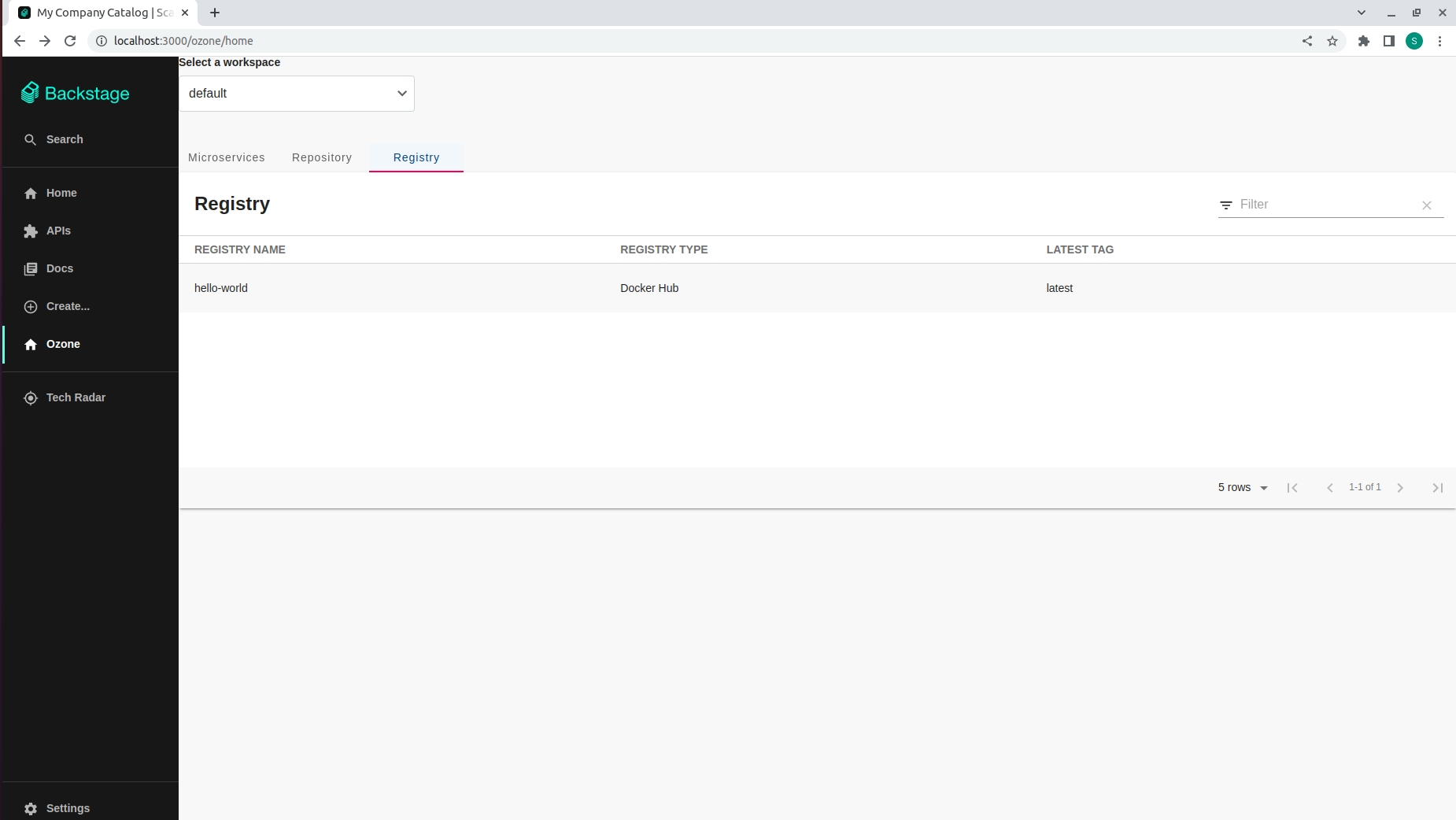

Screenshot from 2023-04-19 17-06-11

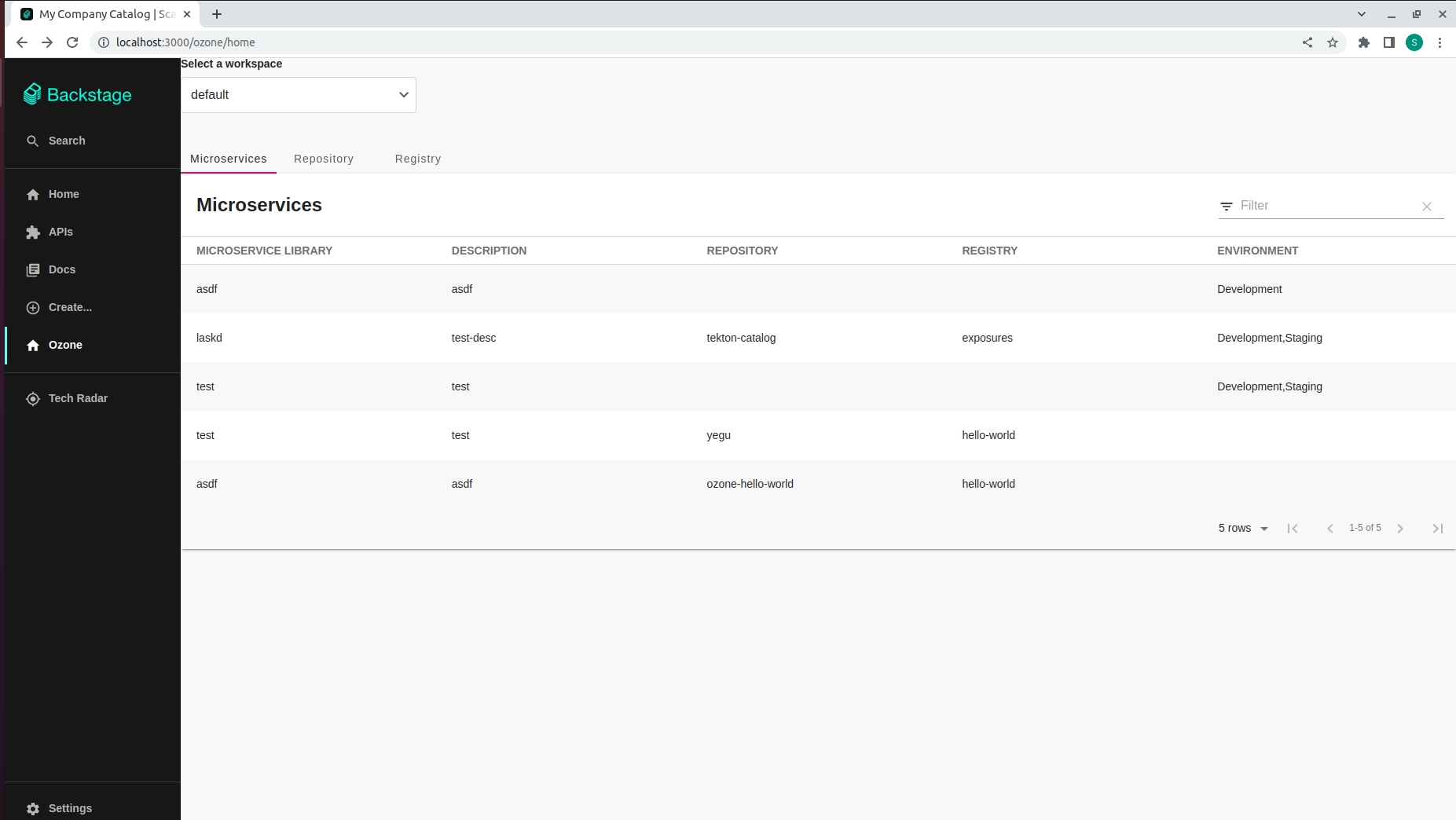

Screenshot from 2023-04-19 17-06-14

Features

• Lists all the Builds,microservices,registry,repository for particular workspace

• Dive into one build to see the tasks and steps

• logs
